AM-CB007
Amber
AM-CB007

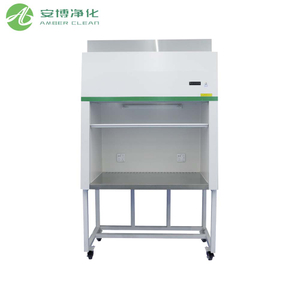

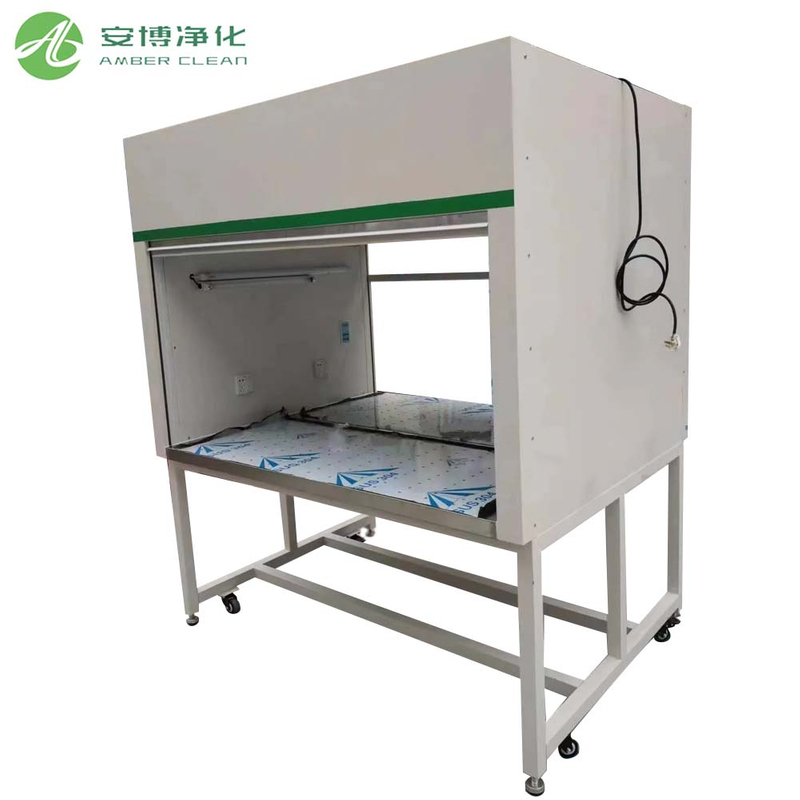

The Clean Bench is a device that provides a localized high cleanliness environment for experiments or production. It mainly uses a high-efficiency filtration system to filter out particles from the air and then blow them continuously in a laminar flow to the operation area, preventing outside air from contaminating the samples or the experimental environment.
The Laminar Flow Clean Air Bench features a vertical laminar flow design with a built-in high-efficiency HEPA filter that filters out more than 99.99% of particles with a particle size of 0.3μm, ensuring that the air in the work area is always in a highly clean state. Through directional Clean Bench Air Flow, it effectively isolates the source of contamination and is generally used in microelectronics, biological experiments, precision instrument assembly, biopharmaceuticals, semiconductor manufacturing, food testing, medical device assembly, and other those industries with high environmental requirements.
The Vertical Laminar Air Flow Bench from Amber not only has a compact and beautiful design, but also supports two or even more people to operate it at the same time, which is especially suitable for precision operations or assembly line work that requires collaboration. The spacious interior of the operating area and the low-noise fan system prevent fatigue even after prolonged use.
Importantly, the Clean Bench Air Flow's ergonomically optimized operating surface and transparent windows not only enhance operating comfort, but also make it easy for managers to observe the work situation at any time, which is more in line with the needs of modern laboratories for efficient and safe operations.
HEPA Clean Bench System: Equipped with high-efficiency HEPA filters to ensure cleanliness up to ISO 5 (Class 100), providing a clean and stable environment for experiments or production processes.
Stable Vertical Laminar Airflow: The Clean Bench Air Flow is scientifically designed to effectively prevent external particles from entering the work area while reducing the risk of cross-contamination.
Multi-functional operation space: Flexible support for different workstation layouts to meet a variety of application needs.
Energy-saving and quiet design: Energy-efficient motor and quiet air duct structure reduce energy consumption while enhancing user experience.
For more information about the HEPA Clean Bench or to obtain a customized solution, please contact the professional Amber Team and we will provide you with the most suitable clean environment solution.
| Model | VFCB-1000 | VFCB-1500 |
| Outer size mm(W*D*H) | 1000*650*1800 | 1500*650*1800 |
| Work area size mm(W*D*H) | 900*600*600 | 1400*600*600 |
| Cleanliness | class 100 | |
| Airflow(m³/h) | 900 m³/h | 1500 m³/h |
| Air speed(m/s) | 0.45±20% | |
| HEPA filter size(mm) | 880*570*69*1 | 760*570*69*2 |
| Filtering efficiency | 99.99%@0.3μm | |
| LED light power | 20W*1 | 40W*1 |
| Fan power | 190W | 270W |
| Noise | ＜65dB | |
| Voltage | AC 220V/50HZ | |
