| Quantity: | |
|---|---|
AM-CB008
Amber
AM-CB008
| Model | VFHB-1000 | VFHB-1500 |
| Outer size mm(W*D*H) | 960*800*1600 | 1500*800*1600 |
| Work area size mm(W*D*H) | 930*600*650 | 1470*600*650 |
| Cleanliness | Class 100 | |
| Airflow(m³/h) | 900m³/h | 1500m³/h |
| Air speed(m/s) | 0.45±20% | |
| HEPA filter size(mm) | 915*610*69*1 | 610*610*69*2 |
| Filtering efficiency | 99.99%@0.3μm | |
| LED light power | 20W*2 | 40W*2 |
| Voltage/power | 220V 50HZ/280W | 220V 50HZ/600W |
| Noise | ＜65dB | |

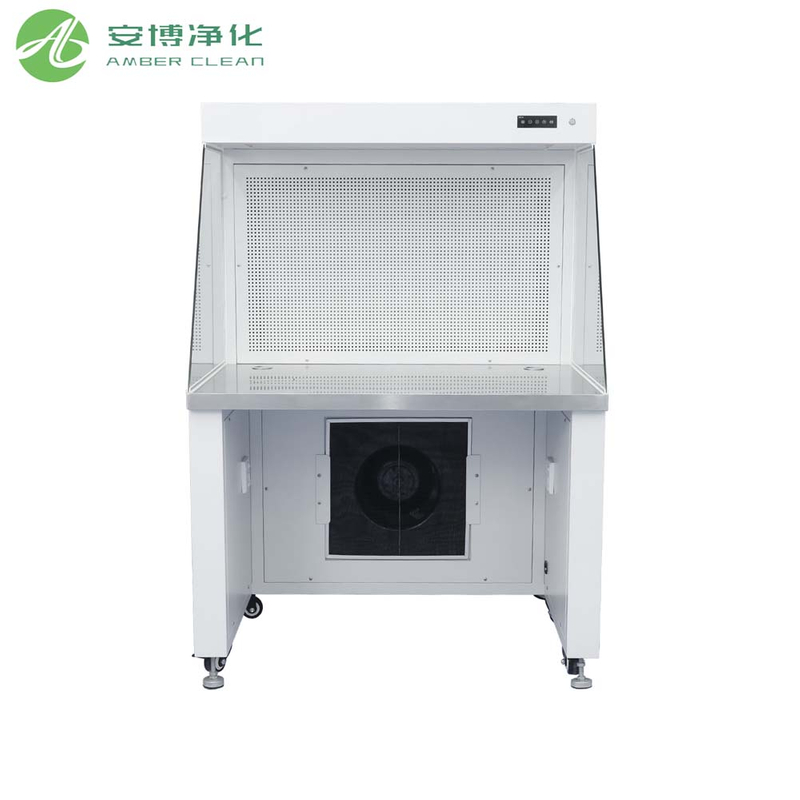

A Laminar Clean Bench is a purification equipment that provides a local high cleanliness working environment, providing a reliable inspection and operating environment to ensure the reliability of bolt inspection results. Horizontal Laminar Flow Benches are widely used in areas with high local cleanliness requirements, such as laboratories, biopharmaceuticals, hospitals, microelectronics, etc.
Adopting hepa filter, with a static filtration efficiency of 100 levels.
The wind speed is adjustable, with the characteristics of long service life, low noise, and low vibration.
Equipped with a large air volume pre filter for easy disassembly and better protection of the high-efficiency filter, ensuring cleanliness.
According to process requirementsa single unit can be used or multiple units can be combined to form a 100 level ultra clean production line.
The core function of Laminar Flow Benches is to provide a sterile, dust-free, localized high-cleanliness space for sensitive operations. Unlike vertical flow, the Horizontal Laminar Clean Bench blows clean air horizontally from the back of the workspace to the front of the operation, effectively eliminating potential contamination of samples from dust falling from the top.
Aseptic Packaging and Dispensing
Microelectronics Assembly
Laboratory Sample Processing
Optics Inspection
Due to its comfortable operation and stable airflow, it is particularly suitable for long hours of precision work on the bench.
The unit uses a high-efficiency HEPA filtration system to ensure that the cleanliness of the air in the work area meets the Class 100 Clean Bench standard (equivalent to ISO Class 5), with no more than 100 particles per cubic foot of air. This level of clean environment is decisive for guaranteeing product quality and experimental results.
Whether it is a single tabletop, two-person seated model, or floor standing structure, this series of Laminar Clean Bench supports personalization to meet the needs of different cleanroom layouts and uses. The shell is made of high-quality cold-rolled steel or stainless steel, with good corrosion resistance and easy to clean, to extend the service life of the equipment.
| Model | VFHB-1000 | VFHB-1500 |
| Outer size mm(W*D*H) | 960*800*1600 | 1500*800*1600 |
| Work area size mm(W*D*H) | 930*600*650 | 1470*600*650 |
| Cleanliness | Class 100 | |
| Airflow(m³/h) | 900m³/h | 1500m³/h |
| Air speed(m/s) | 0.45±20% | |
| HEPA filter size(mm) | 915*610*69*1 | 610*610*69*2 |
| Filtering efficiency | 99.99%@0.3μm | |
| LED light power | 20W*2 | 40W*2 |
| Voltage/power | 220V 50HZ/280W | 220V 50HZ/600W |
| Noise | ＜65dB | |
A Laminar Clean Bench is a purification equipment that provides a local high cleanliness working environment, providing a reliable inspection and operating environment to ensure the reliability of bolt inspection results. Horizontal Laminar Flow Benches are widely used in areas with high local cleanliness requirements, such as laboratories, biopharmaceuticals, hospitals, microelectronics, etc.
Adopting hepa filter, with a static filtration efficiency of 100 levels.
The wind speed is adjustable, with the characteristics of long service life, low noise, and low vibration.
Equipped with a large air volume pre filter for easy disassembly and better protection of the high-efficiency filter, ensuring cleanliness.
According to process requirementsa single unit can be used or multiple units can be combined to form a 100 level ultra clean production line.
The core function of Laminar Flow Benches is to provide a sterile, dust-free, localized high-cleanliness space for sensitive operations. Unlike vertical flow, the Horizontal Laminar Clean Bench blows clean air horizontally from the back of the workspace to the front of the operation, effectively eliminating potential contamination of samples from dust falling from the top.
Aseptic Packaging and Dispensing
Microelectronics Assembly
Laboratory Sample Processing
Optics Inspection
Due to its comfortable operation and stable airflow, it is particularly suitable for long hours of precision work on the bench.
The unit uses a high-efficiency HEPA filtration system to ensure that the cleanliness of the air in the work area meets the Class 100 Clean Bench standard (equivalent to ISO Class 5), with no more than 100 particles per cubic foot of air. This level of clean environment is decisive for guaranteeing product quality and experimental results.
Whether it is a single tabletop, two-person seated model, or floor standing structure, this series of Laminar Clean Bench supports personalization to meet the needs of different cleanroom layouts and uses. The shell is made of high-quality cold-rolled steel or stainless steel, with good corrosion resistance and easy to clean, to extend the service life of the equipment.
