AM-FFU12
Amber
AM-FFU12

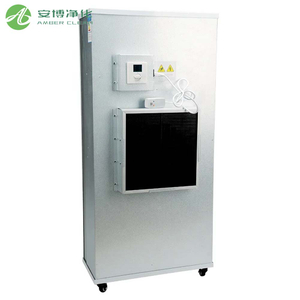

This Fan Filter Unit from Amber is a cleanroom unit that combines high-efficiency filtration, low-noise operation, and energy-saving features for cleanrooms with stringent air quality requirements, such as pharmaceuticals, electronics manufacturing, and biological laboratories.
Modern cleanroom environments place higher demands on equipment intelligence, and our Fan Filter Unit Design takes this demand fully into account, for example:
Intelligent control system: Equipped with advanced inverter drive technology, it can automatically adjust the air speed according to the cleanliness of the room and realise intelligent operation.
Remote monitoring function: Supports connection to the building management system through IOT technology to monitor the operation status, air speed and filter life in real time.
Failure warning system: The system automatically sends out alerts when there is an abnormality in the equipment or when the filter needs to be replaced.
This intelligent Fan Filter Unit Design significantly reduces maintenance costs and ensures a stable cleanroom environment.
The product adopts high-quality brushless DC motor, running smoothly, noise as low as 45-60dB.
2. High efficiency filtration performance
With H13/H14 high efficiency HEPA filter, it can effectively filter more than 99.99% of 0.3 micron particles.
3. Flexible installation
The Fan Filter Unit Cleanroom is lightweight and suitable for ceiling-mounted, wall-mounted and modular installation.
4. Intelligent Monitoring
The FFU Fan Filter Unit is equipped with a digital display panel and supports remote network monitoring system, which can be managed remotely through mobile phones or computer terminals.
Users can adjust the wind speed according to their needs.
5. Customised service
We provide multi-specification and multi-function customised Clean Room Fan Filter Unit solutions.
| Model | FFU-500 | FFU-1000 | FFU-1500 | FFU-2000 |
Outer size(mm) W*D*H | 575*575*230 | 575*1175*230 | 875*1175*230 | 1175*1175*230 |
| HEPA filter(mm) | 570*570*69 | 570*1170*69 | 870*1170*69 | 1170*1170*69 |
| Air flow | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h |
| Pressure | 210Pa | 210Pa | 220Pa | 230Pa |
| Motor power | 170W | 170W | 210W | 275W |
| Noise | 47-55dB | 47-55dB | 50-58dB | 50-58dB |
| Weight | 27KG | 34KG | 46KG | 55KG |
| Cleanliness | Class 100 (ISO 14644-1) | |||
| Material | Stainless steel/ Galvanized steel/ Coated steel | |||
| Voltage | AC 220V/50HZ (AC 380V/50HZ) | |||
