| Model | CDC-C-400 | CDC-C-500 | CDC-C-600 | CDC-C-800 |
| Outer size(mm) W*D*H | 600*470*1000 | 700*570*1100 | 800*670*1200 | 1000*870*1400 |
| Inner size(mm) W*D*H | 400*400*400 | 500*500*500 | 600*600*600 | 800*800*800 |
| HEPA filter size | 260*260*90 | 330*280*90 | 430*380*90 | 630*580*90 |
| Motor power | 200W | 300W | 400W | 600W |
| Air speed(m/s) | 0.45±20% | |||
| Cleanliness | Grade A(Class 100) | |||
| Noise | ＜65dB | |||
| Showing time | 0-99min(adjustable) | |||
| Voltage | AC 220V/50HZ | |||

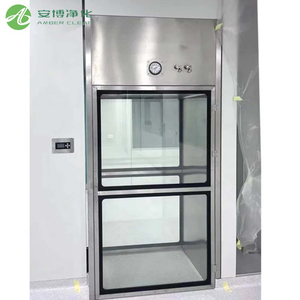

The Stainless Steel Clean Room Pass Box plays an important role in pharmaceutical, biotechnology, electronics manufacturing, and other production or laboratory environments where contamination control during material transfer is critical as it's mechanical interlock structure.
The core design of the Clean Room Pass Through is based on a Mechanical Interlock Structure which ensures that both doors cannot be opened at the same time, thus maintaining the Clean Room's airtightness. The workflow is as follows:
1. Double Door Interlock Mechanism: When one side of the door opens, the other side is automatically locked, preventing outside air from entering the clean area directly.
2. Clean air circulation: Some high-end models are equipped with HEPA filtration system to blow dust during the transfer process to ensure internal cleanliness.
3. 304 stainless steel material: Corrosion-resistant, easy to clean, in line with Cleanroom hygiene standards, long-term use is not easy to breed bacteria.
4. Optional function expansion: Such as UV sterilisation lamp, touch screen control, etc. to meet the special needs of different industries.
With this design, Clean Room Pass Through Window can not only transfer materials efficiently, but also effectively reduce the risk of contamination caused by human intervention.
Clean Room Pass Box is widely used in industries with strict cleanliness requirements to ensure that materials are not contaminated during the transfer process. For example:
1. Pharmaceutical and Biotechnology: Passing raw materials, reagents or finished products in GMP Clean Room to avoid cross contamination.
2. Electronic manufacturing: Semiconductor, microelectronics industry in a dust-free environment to pass precision components, to prevent dust from affecting product yield.
3. Medical and Laboratory: Hospital sterile rooms, laboratory sample transfer, to ensure biological safety.
4. Food & Cosmetics: High hygiene standard production line materials in and out, in line with industry norms.
The core objective of using Clean Room Pass Through Chamber is to maintain differential pressure in the Clean Room and isolate contaminants.
1. High durability: 304 stainless steel construction resists corrosion, suitable for wet or chemical environments.
2. Strict sealing: Mechanical interlock + silicone sealing strip to ensure airtightness in accordance with ISO 14644.
3. Flexible configuration: Customised sizes, additional functions (e.g. sterilisation, dust removal, etc.) are available on request.
4. After-sales guarantee: We have many years of experience in the Clean Room industry, and the customers we serve rate our products highly.
